Model：MPA-002020S37

Frequency Range: 0.2-2GHz
Output Power: 12/10W Typ./Min.
P1dB: 6.3/5W Typ./Min.
Gain: 42/41dB Typ./Min.
Gain Flatness: ±2dB Max.
2nd/3nd Harmonics: -15/-15dBc Typ.
Power Consumption: 75W
Outline Drawing: 163 x 25 x 86.36mm

Model：MPA-003020S47

Frequency Range：0.38-2GHz
Output Power：48/47dBm Typ./Min.
P1dB：44/43dBm Typ./Min.
Gain：48/46dB Typ./Min.
Gain Flatness：±2dB Max.
2nd/3nd Harmonics：-12/-12dBc Max.
Power Consumption：210W
Outline Drawing：163x25x86mm

Model：MPA-007027S50

Frequency Range：0.7-2.7GHz
Output Power:50/49dBm Typ./Min.
P1dB：47.5/46.5dBm Typ./Min.
Gain：50dB Typ.
Gain Flatness：±1.6dB Max.
2nd/3nd Harmonics：-15/-15dBc Max.
Power Consumption：440W
Outline Drawing：180x25x140mm

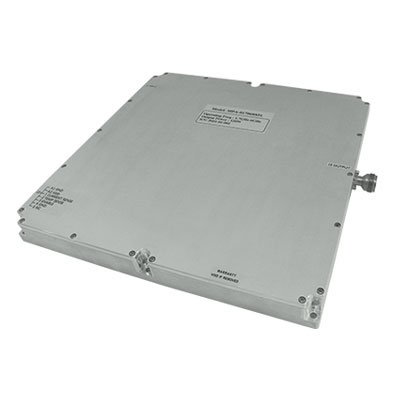

Model：MPA-008030S51

Frequency Range: 0.8-3GHz
Output Power: 50.8/50dBm Typ./Min.
P1dB: 50/40W Typ./Min.
Gain: 51/50dB Typ./Min.
Gain Flatness: ±1.5dB Max.
2nd/3nd Harmonics: -15/-18dBc Max.
Power Consumption: 450W
Outline Drawing: 180 x 25 x 140mm

Model：MPA-010060S47

Frequency Range: 1-6GHz
Output Power: 47/46dBm Typ./Min
P1dB: 20/10W Typ./Min.
Gain: 47/46dB Typ./Min.
Gain Flatness: ±2.5dB Max.
2nd/3nd Harmonics: -12/-12dBc Max.
Power Consumption: 240W
Outline Drawing: 170 x 25 x 165mm

Model：MPA-010060S50

Frequency Range：1-6GHz
Output Power：100/70W Typ./Min.
P1dB：40/20W Typ./Min.
Gain：50/48dB Typ./Min.
Gain Flatness：±2.5dB Max.
2nd/3nd Harmonics：-10/-15dBc Max.
Power Consumption：480W
Outline Drawing：240x25x240mm

Model：MPA-017060S51

Frequency Range：1.7-6GHz
Output Power：120/100W Typ./Min.
P1dB：44/42dBm Typ./Min.
Gain：51/50dB Typ./Min.
Gain Flatness：±1.6dB Max.
2nd/3nd Harmonics：-13/-15 Max.
Power Consumption：550W
Outline Drawing：240x25x240mm

Model：MPA-020060S50

Frequency Range：2-6GHz
Output Power：100/80W Typ./Min.
P1dB：25/18W Typ./Min.
Gain：50/49dB Typ./Min.
Gain Flatness：±1.5dB Max.
2nd/3nd Harmonics：-13/-20dBc Max.
Power Consumption：500W
Outline Drawing：240x25x240mm
