Model：MPA-020180S42

Frequency Range: 2-18GHz
Output Power: 42/41dBm Typ./Min.
Gain: 42dB Typ.
Gain Flatness: ±1.5dB Max.
2nd/3nd Harmonics: -15/-20dBc Max.
Power Consumption: 126W
Outline Drawing: 160 x 25 x 140mm

Model：MPA-020180S40

Frequency Range：2-18GHz
Output Power：41.8/40dBm  Typ./Min..
P1dB：33/30dBm Typ./Min.
Gain：41/40dB Typ./Min.
Gain Flatness：±2.5dB Max.
2nd/3nd Harmonics：-12dBc Typ.
Power Consumption：230W
Outline Drawing：160x25x140mm

Model：MPAR-004020S47

Frequency Range: 0.45-2GHz
Output Power: 48/47dBm Typ./Min.
P1dB: 45/44dBm Typ./Min.
Gain: 48/46dB Typ./Min.
Gain Flatness: ±2dB Max.
2nd/3nd Harmonics: -13/-15dBc Max.
Power Consumption: 400W Max.
Outline Drawing: 482.6 x 132 x 503mm (3U)

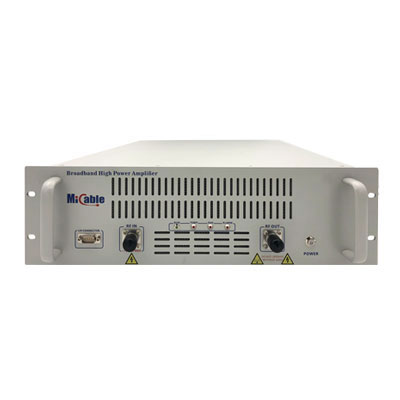

Model：MPAR-004020S50

Frequency Range：0.45-2GHz
Output Power：50/49dBm Typ./Min.
P1dB：48/47dBm Typ./Min.
Gain：51/49dB Typ./Min.
Gain Flatness：±2dB Max.
2nd/3nd Harmonics：-13/-15dBc Max.
Power Consumption：550W Max.
Outline Drawing：482.6x132x503mm (3U)

Model：MPAR-005060S50

Frequency Range: 0.5-6GHz
Output Power: 51/50dBm Typ./Min.
P1dB: 45/44dBm Typ./Min.
Gain: 51/50dB Typ./Min.
Gain Flatness: ±2dB Max.
2nd/3nd Harmonics: -12/-15dBc Max.
Power Consumption：600W Max.
Outline Drawing：482.6 x 132.5 x 503mm (3U)

Model：MPAR-060180S51-A

Frequency Range: 6-18GHz
Output Power: 51/50dBm Typ./Min.
Gain: 53/50dB Typ./Min.
Gain Flatness: ±2dB Max.
2nd/3nd Harmonics: -9/-15dBc Max.
Power Consumption: 1600W Max.
Outline Drawing: 482.6 x 221.5 x 500mm (5U)

Model：MPAR-007027S47

Frequency Range：0.7-2.7GHz
Output Power：48/47dBm Typ./Min.
P1dB：46/44.5dBm Typ./Min.
Gain：47/46dB Typ./Min.
Gain Flatness：±1.5dB Max.
2nd/3nd Harmonics：-12/-20dBc Max.
Power Consumption：350W Max.
Outline Drawing：482.6x132x503mm (3U)

Model：MPAR-007060P41

Frequency Range: 0.7-6GHz
Output Power: 44/42dBm Typ./Min.
P1dB: 41.8/41dBm Typ./Min.
Gain: 45/42dB Typ./Min.
Gain Flatness: ±2dB Max.
2nd/3nd Harmonics: -12/-15dBc Max.
Power Consumption: 500W Max.
Outline Drawing: 482.6 x 132.5x 503mm (3U)
