MIcable Inc.

Termination/Attenuator

Home > Products

Datasheet

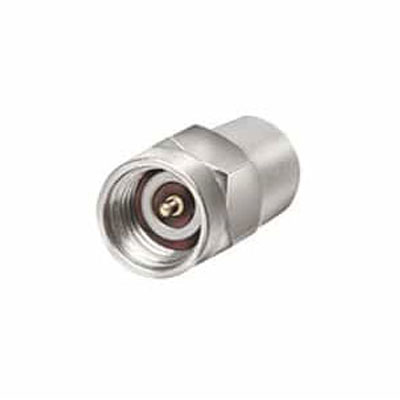

DC-40GHz 2.92mm Termination

Model：TM40-02-KM

Frequency Range：DC-40 GHz
Power Rating：2 W
VSWR：1.2:1 Max.
Material: Stainless Steel, passivated
Datasheet

DC-40GHz 2.92mm Termination

Model：TM40-02-KF

Frequency Range：DC-40 GHz
Power Rating：2 W
VSWR：1.2:1 Max.
Material: Stainless Steel, passivated
Datasheet

DC-26.5GHz SMA Termination

Model：TM26-02-SM

Frequency Range：DC-26.5 GHz
Power Rating：2 W
VSWR：1.2:1 Max.
Material: Stainless Steel, passivated
Datasheet

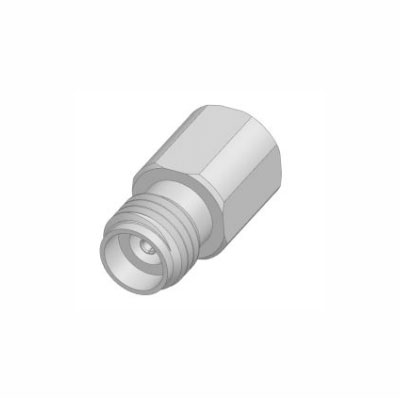

DC-40GHz 2.92mm Termination

Model：TM40-01-KF

Frequency Range：DC-40 GHz
Power Rating：1 W
VSWR：1.2:1 Max.
Material: Stainless Steel, passivated
Datasheet

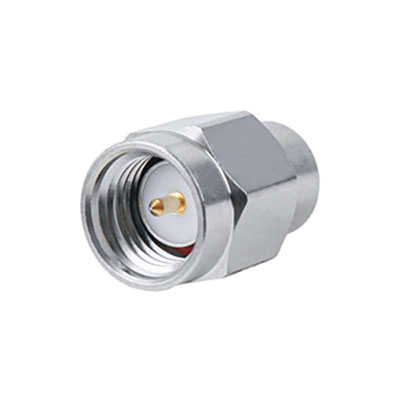

DC-18GHz SMA Termination

Model：TM18-02-SM

Frequency Range：DC-18 GHz
Power Rating：2 W
VSWR：1.15:1 Max.
Material: Stainless Steel, passivated
Datasheet

DC-18GHz SMA Termination

Model：TM18-02-SF

Frequency Range：DC-18 GHz
Power Rating：2 W
VSWR：1.15:1 Max.
Material: Stainless Steel, passivated
Datasheet

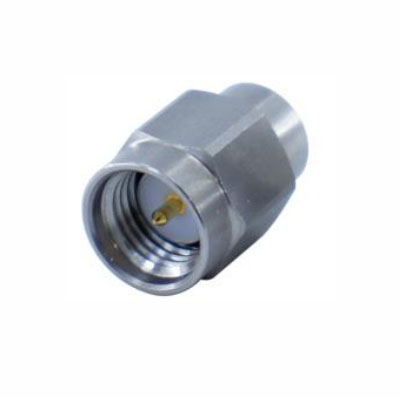

DC-18GHz SMA Termination

Model：TM18-01-SM

Frequency Range：DC-18 GHz
Power Rating：1 W
VSWR：1.15:1 Max.
Material: Stainless Steel, passivated
Datasheet

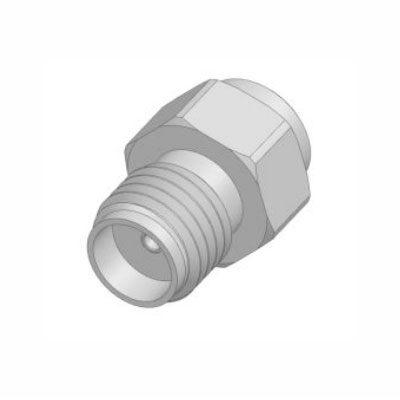

DC-18GHz SMA Termination

Model：TM18-01-SF

Frequency Range：DC-18 GHz
Power Rating：1 W
VSWR：1.15:1 Max.
Material: Stainless Steel, passivated
