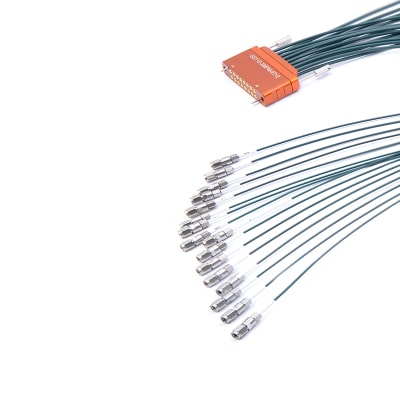

Model：HSM90-XMPM-8X2-1Y-L

Frequency：DC-90GHz
Cable Loss：13dB/m@90GHz
VSWR：1.50:1@90GHz Max.
Multi-pin Connector：16-Channel
Connector Type：XMPM-1.0/M

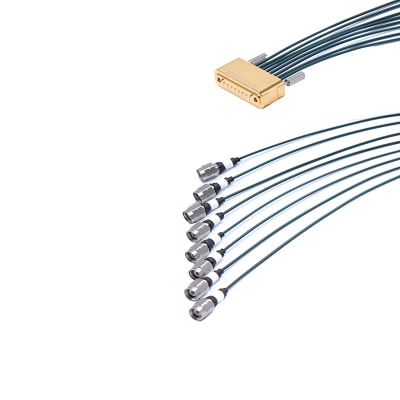

Model：HSM70-XMPM-8X1-0P-L

Frequency：DC-70GHz
Cable Loss：11dB/m@70GHz
VSWR：1.50:1@70GHz Max.
Multi-pin Connector：8-Channel
Connector Type：XMPM-1.85/M

Model：HSM50-SMPM-8X1-392-L

Frequency：DC-50GHz
Cable Loss：5.72dB/m@50GHz
VSWR：1.35:1@50GHz Max.
Multi-pin Connector：8-Channel
Connector Type：SMPM-2.4/M

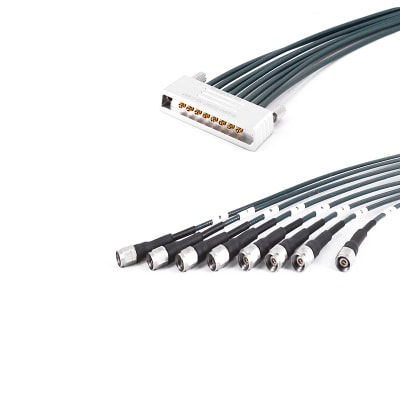

Model：HSM40-SMPM-8X1-402-L

Frequency：DC-40GHz
Cable Loss：4.95dB/m@40GHz
VSWR：1.30:1@40GHz Max.
Multi-pin Connector：8-Channel
Connector Type：SMPM-2.92/M
